Scope of application:

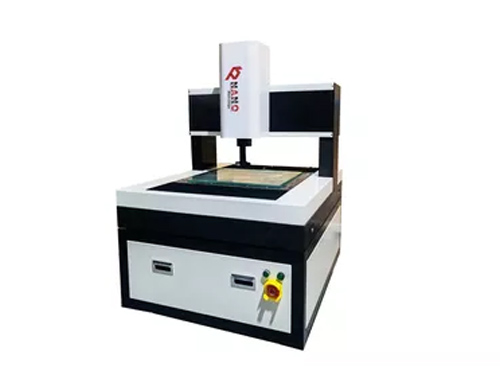

Surpassy series of large travel CNC image measuring instrument. It adopts the original imported screw drive and servo control technology, combined with the company's independent research and development of automatic measurement software, can achieve a large number of workpiece measurement, suitable for parts detection and quality control. It is widely used in machinery, electronics, hardware, plastic, mold and other industries.

Product features:

The large stroke measuring instrument features a proprietary granite dovetail design.

X, Y, Z three-axis servo control, high positioning accuracy, smooth operation.

X, Y guide rail adopts high precision guide rail, stable performance, not easy to deformation.

Programmable constant current 40 zone cold light surface light source, can be adapted to complex workpiece measurement.

Equipped with special CNC software, greatly improve the measurement efficiency.

Manual or auto zoom lens magnifies the image to 20-120 times, optional auto zoom lens for auto zoom zoom.
